IC type: LB1934 IC.
Gray level: 256.
Viewing angle: 120 °.
Input voltage: DC 12V.
Color: full color 24 bit.
Power: 0.3 W / LED 60 LEDs / m
Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and adjust them to any color or animation you want. 256 brightness screen and 24 bit color screen.

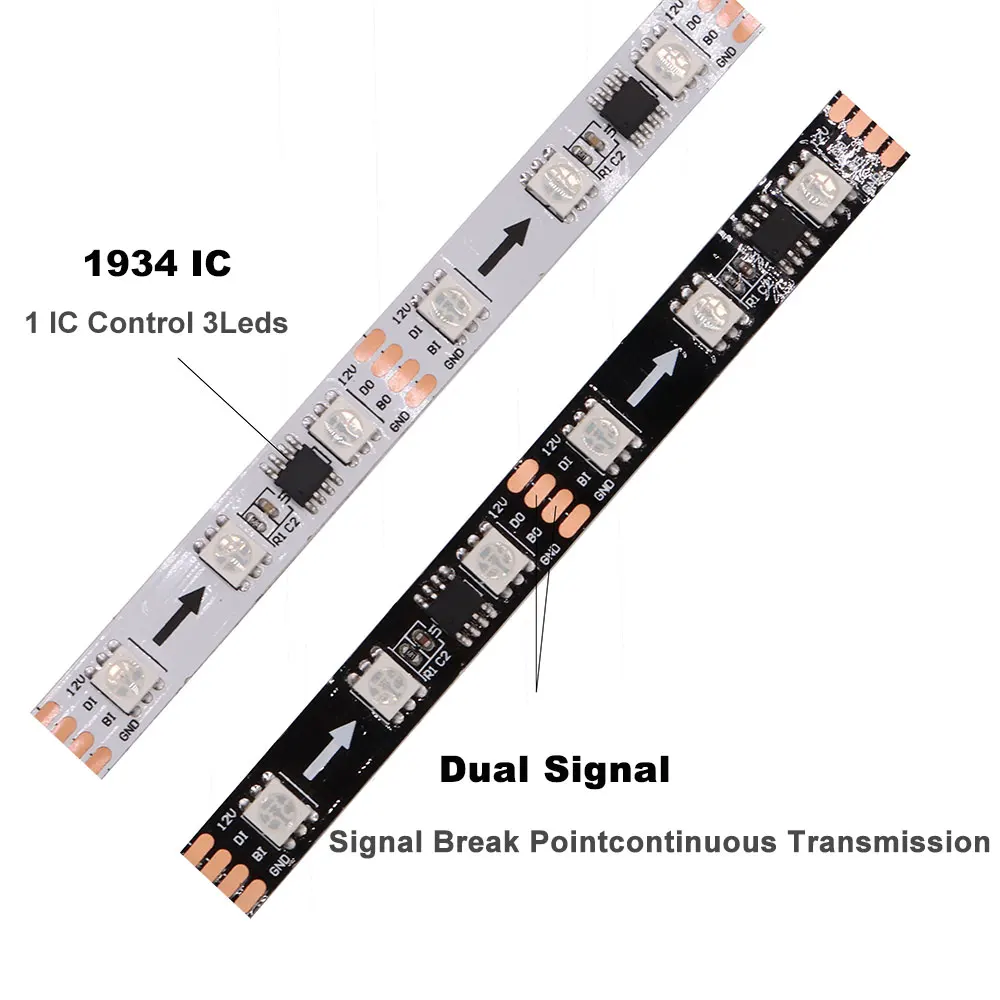

Dual signal cables:
The LB1934 LED strip is Similar to the version of the 12V WS2811 LED strip, designed with one data cable and one backup data cable. Continuous transmission breakpoint signal. If an LED is damaged, the following LEDs may still work.
Specifications:
IC type: LB1934 IC.
Gray level: 256.
Viewing angle: 120 °.
Input voltage: DC 12V.
Color: full color 24 bit.
FPCB Board Color: White / Black.
Power: 0.3 W / LED 60 LEDs / m
Model: strip LB1934 5050rgb chips.
Storage temperature: -30- + 95 ° C.
Operating temperature: -20 ~ + 85 ° C.
Led Quantity: 30/60 Units. RGB SMD 5050 per meter.
The distance between two LEDs: 30 LEDs / m - 28mm, 60 LEDs / m - 12mm
Wavelength (nm): red, 650nm; Green, 520nm; Blue, 460nm.
Waterproof Level: IP30: Not waterproof, IP65: waterproof with silicone coating, IP67: waterproof on SiliconTube.
Package includes:you choose led strip
Note:
The power adapter and controller are not included.
It will not light for a long time when the strip is on the coil.\
