WS2814 RGBWW Pixel addressable strip DC 12V 60Pixel/Meter
Brand: Rose Lighting
Product Code: WS-1222
M.R.P.: ₹2600
Price: ₹2340
Product Price : ₹1,983.05 + 18% GST : ₹356.95
You Save: ₹260 (10%)
GST Inclusive
Free Delivery 2 to 5 working days
About this item
Application:
1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc;
2. Auditorium walkway lighting, outdoor illuminated signs and advertisements;
3. Illumination lighting using business walkway, canopy, stairway lighting, amusement park;
4. Channel signal lighting for stores, restaurants, bars, etc;
5. DIY lights for home use;
Features

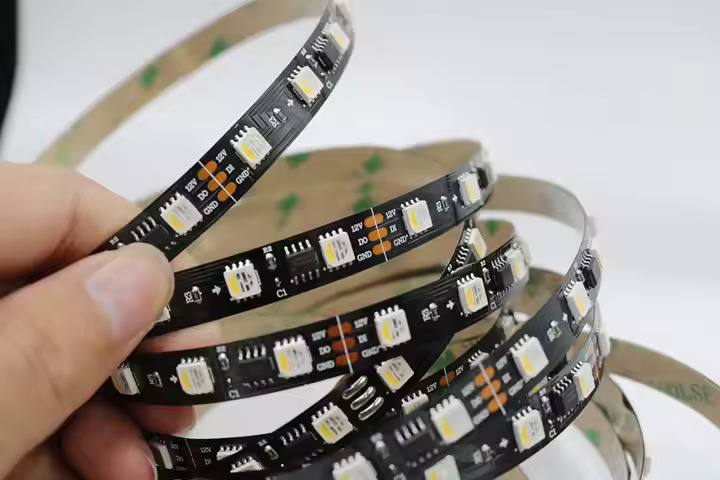

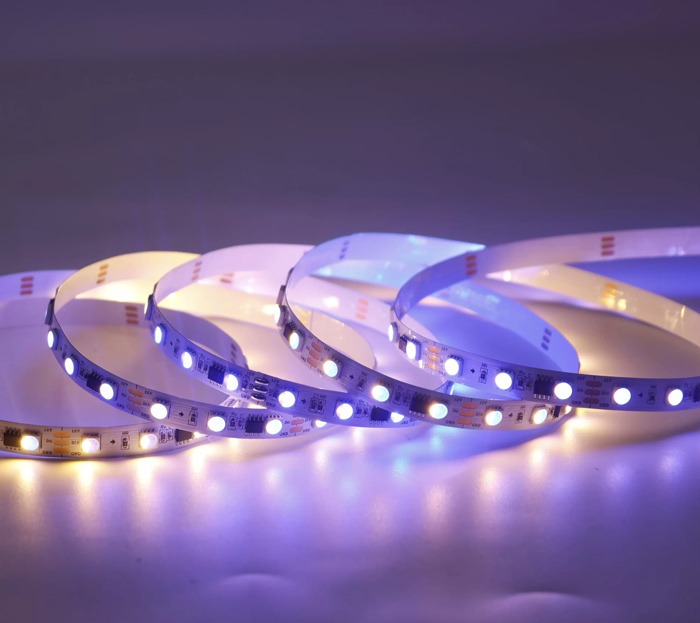

WS2814 RGBW LED Strip Dc 12V 60leds per meter
Introduction
Led type: 5050 SMD RGB LED
IC type: ws2814 IP20
PCB Width:10mm
Led lighting angle: 120
LED Q'ty: 60leds/m
IP Rating IP20
- IP20 Non-waterproof with 3M sticker on the back,
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
3 led 1 IC with 12V, individual controlled, can be made into high-density high-definition display;
Advantages:
1.PWM refresh rate: 1.2kHz, transfer speed 800k bps
2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
3. 12V ( 3leds one IC with 12V)
4.2unce PCB board with double cooper layer(hongqi brand 35um copper )
5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board
6. Flexible PCB material . ever 3 LEDcan be cut with 12V
7. 60 leds per meter . 12V low voltage inputted , don't over 13V , otherwise you will destroy the entire strip .
8. Controller System SD controller , DMX controller , Artnet and so on .(SPI protocel)
9. Installing : screw+silicon clipand 3M adhesive on back side for sticky
10.Packaging
5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm GW: 12.5kg with nonwaterproof Ip20
