Flexible dmx512 digital Pixel led strip, RGB color , RGBW color ,dual white color optional

Brand: Rose Lighting
Product Code: WS-1186
156 in stock.

Features

Flexible dmx512 digital white led strip 60leds/M Dc24V 10 pixels/m

Our DMX  flexible led strip is super strong dmx signal strip with A,B signal parallel signal transfer. 5 cables ( PI/PO address writing wire, A(Dmx+),B(Dmx-),GND),

and  DC24V,the MAX485 is inside the DMX512 IC ,It can be cut ,can be parallel and series connection .

Product details

Product NameRL-STR-dmx512-5050-60-12V/24V
LED Qty60leds/m
DMX512 Qty10 pcs with 24V
DMX channel30 channels with 24V
PCB Width12mm wide
VoltageDC24V  Dc12V
Watt14.4W
PCB ColorWhite PCB Black PCB
IP RatingIP20/IP65/IP67/IP68
ControllerDMX512 Art-Net/DVI/DMX Controller
Product KeywordsDc24V 12V flex dmx digital led strip 60leds/M

key specification

1. This Dc24V 12V flex dmx digital led strip 60leds/M ,that different with normal SPI led pixel strips. DMX512 led strips protocl is DMX512 that signal is parallel not series.

2. Its advantage is parallel DMX512 signal could avoid LEDs color influenced by the failure of one light in serial connection.

2. Entire DMX RGB digital led strip has 10 pixels with 24V ;20pixels with 12V , 60 RGB leds in a meter with 12mm width pcb board.

3. Communication between DMX512 RGB led digital tapes are synchronized perfectly under support of Artnet / DMX512 led controllers.

4. 24V 60 leds DMX RGB LED Pixel Digital strip need to write DMX address code via DMX address coder / controller.

5. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.

6. 24V 60 leds DMX RGB LED Pixel Digital ribbon is flexible , bright, durable and easy for installation.

For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip,

there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.

Advantages:

  • 2unce PCB board with double cooper layer(hongqi brand 35um copper )
  • doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board
  •  It comes in 1 meters per reel with 5Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
  • Flexible PCB material . ever 3 LEDcan be cut with 12V; every 6LED cab be cut with 24V;
  • 60LEDs/M with 12V  . 12V low voltage inputted , don't over 13V , otherwise you will destroy the entire strip .
  • 60LEDs/M with 24V  . 24V low voltage inputted , don't over 25V , otherwise you will destroy the entire strip .
  • warranty: 3years
  • Original  UCS512 C3 IC chip or TM512AC  with standard dmx512 signal ,,

Installing : screw+silicon clipand 3M adhesive on back side for sticky

Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Waterproof IP grade

IP20 Non-waterproof with 3M sticker on the back, Size:5000*12*2.5mm

IP65 waterproof is silicone gel or epoxy on the surface,Size:5000*12*3mm

IP67: silicone tube,Size:5000*14*4mm

IP68: silcone gel(or epoxy) inside silicone tube.Size:5000*14*4mm

Product details

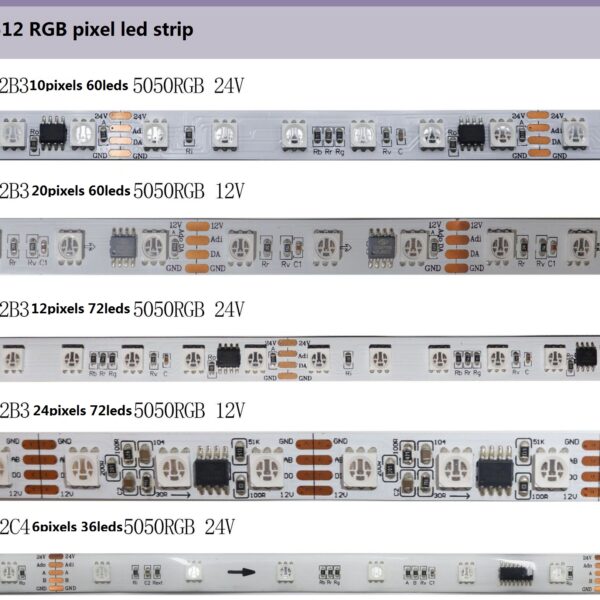

RGB Type

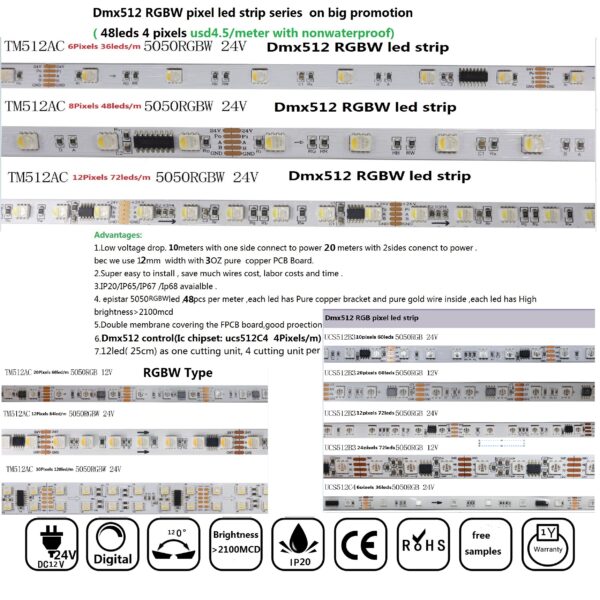

RGBW Type

Dual white Type
