New item: WS2811 15mm width Digital LED Strip Dc 12V  60leds 20 pixels  per meter 30meter long per strip ,no voltage drop issue

Brand: Rose Lighting
Product Code: WS-1202

About this item

Application:

1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc;

 2. Auditorium walkway lighting, outdoor illuminated signs and advertisements;
 3. Illumination lighting using business walkway, canopy, stairway lighting, amusement park;
 4. Channel signal lighting for stores, restaurants, bars, etc;
 5. DIY lights for home use;
more deyails ,please contact at [email protected]

58 in stock.

Features

New item: WS2811 15mm width Digital LED Strip Dc 12V  60leds 20 pixels  per meter 30meter long per strip ,no voltage drop issue

Introduction

Led type: 5050 SMD RGB LED

Brightness: 2100MCD for one 5050 RGB led
IC type: ws2811
PCB Width:15mm

Coppper material: 3ounce 3535 um copper

Led lighting angle: 120°
LED Q'ty:  60leds/m
IP Rating IP20, IP65, IP67, IP68.

  • IP20 Non-waterproof with 3M sticker on the back,
  • IP65 waterproof is silicone gel or epoxy on the surface,
  • IP67: silicone tube,(silicone sheathing ),
  • IP68: silcone gel(or epoxy) inside silicone tube.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
3 LED 1 IC with 12V ,, every 3 led  individual controlled, can be made into high-density high-definition display;

Advantages:

1.PWM refresh rate: 1.2kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.12V  ( 3leds one IC with 12V)

4. 3unce PCB board with double cooper layer(hongqi brand 3535 copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V,

7. 60 leds per  meter . 12V low voltage inputted , don't over 13V , otherwise you will destroy the entire strip .

30leds per meter optional

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Product details

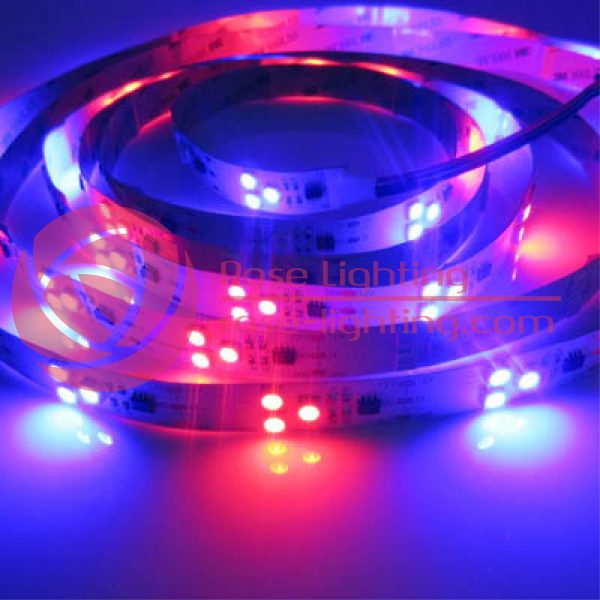

Nonwaterproof Ip20

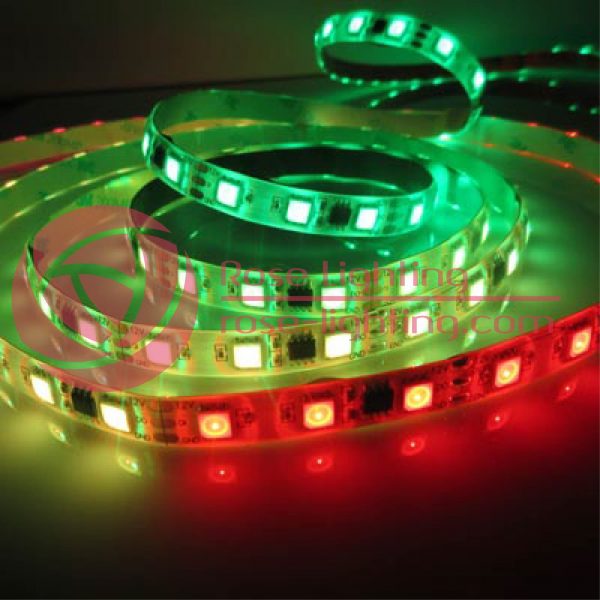

waterproof Ip67

waterproof Ip68





Download the detailed specification here please

RL-STR-ws2811-5050RGB-60-12V-15mm
